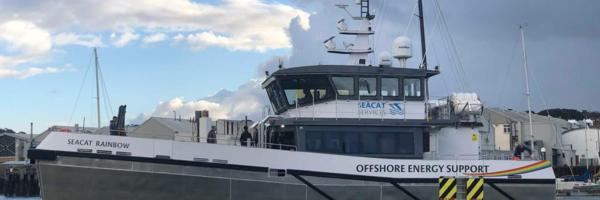

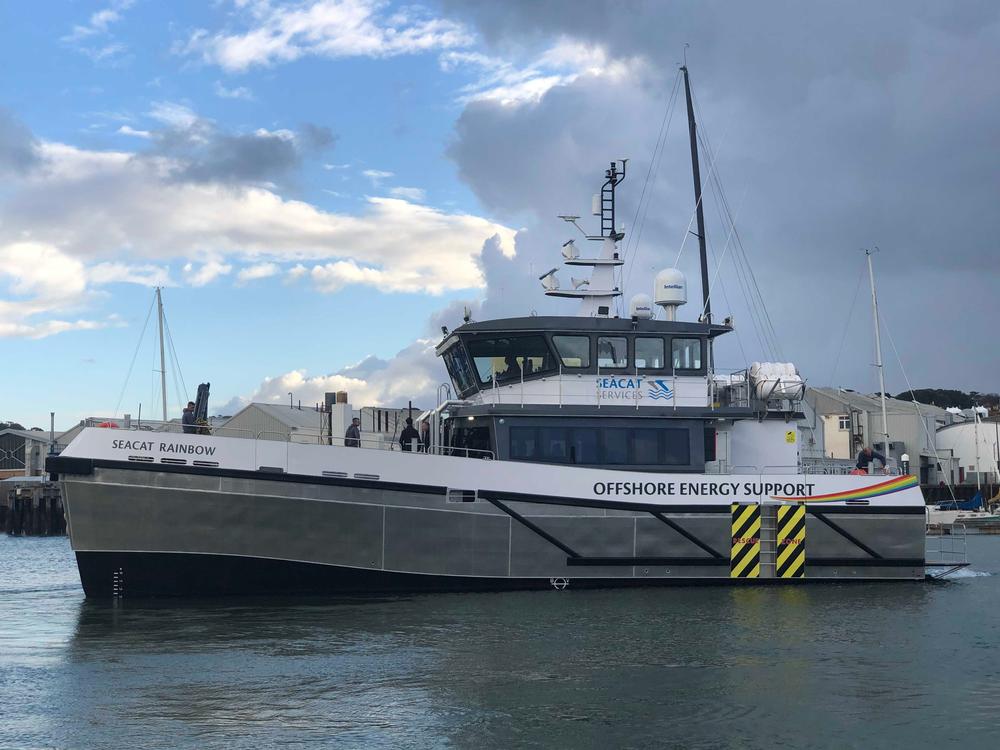

Seacat Rainbow

Available from March 2021

Below is a general specification of our C-24 BV class Windfarm support/crew transfer vessel. A more detailed specification is available as a download. This vessel design by Chartwell Marine has been designed to maximise passenger safety and comfort and is truly a multi-purpose workboat specifically for the offshore windfarm application.

General:

Builder: Diverse Marine Ltd.
Design: Chartwell C-24
Construction: Aluminium
Length Overall: 23.9m
Max Beam: 8.7m
Draft: 1.3m
GRT: 110.5 tonnes
Certification: BV +HULL +MACH Light Ship - Fast Utility Vessel sea area 3

Statistics:

Fuel 16,000 Litres
Fresh Water 1,500 Litres
Sprint: 28.0 Knots
Service Speed: 26.0 Knots

Machinery:

2 x MTU 12V2000 M72
Rolls Royce S56-3 Water Jets
2 x Onan 27 kw / 400V 3phase 50Hz

Equipment:

Fuel transfer system
Pressure washer
Crew access system capable
Crane installed
Container mounts forward and aft

Welfare:

Crash tested suspension seats
Settee and crew mess area
Luggage and spares areas
2 crew cabins
Toilets
Showers
Air conditioning and heating
Satellite televisions and DVD players
Wireless 4G internet
High speed satellite internet (VSAT)
Cooker
Microwave/Combination-Oven
Hot water boiler
Coffee Machine
Fridge

Overview


Capacity 24 pax / 3 crew
Builder Diverse Marine
Class BV +HULL +MACH Light Ship - Fast Utility Vessel sea area 3
Area Europe
Dimen. 23.9m x 8.7m x 1.3m

Vessel Specification

Download Spec Sheet (516 kb)
