« Back to vessels

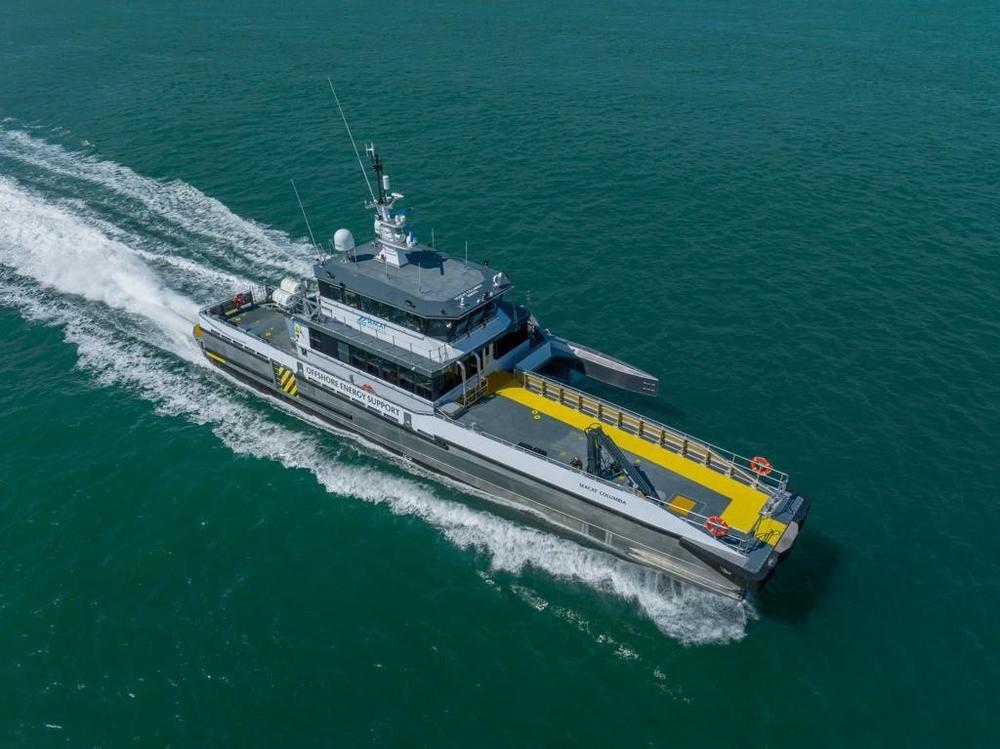

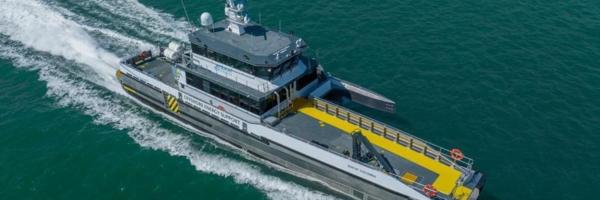

Seacat Columbia

Available from June 2023

Below is a general specification of our BarTech ProA 30m Class Windfarm support/crew transfer vessel. A more detailed specification is available as a download. This vessel designed by BarTech is a truely unique offshore windfarm specific concept, maximising the efficency of the hull form to reduce fuel use and GHG emissions, while at the same time ensuring passenger safety and comfort.


Builder: Diverse Marine Ltd.
Design:  BarTech ProA 30m Class
Construction: Aluminium
Length Overall: 30.0m
Max Beam: 10.9m
Draft: 1.8m
GRT: 163.0 tonnes
Certification: BV +HULL +MACH Lightship/Fast Utility Vessel, Sea Area 3


Fuel 16,000 Litres
Fresh Water 1,000 Litres
Sprint: 31.0 Knots
Service Speed: 26.0 Knots


2 x MTU 12V2000 M72
Rolls Royce S56-3 Water Jets
2 x Onan 27 kw / 400V 3phase 50Hz


Fuel transfer system
Pressure washer
Crew access system capable
Crane installed
Container mounts forward and aft


Crash tested suspension seats
Settee and crew mess area
Luggage and spares areas
2 crew cabins
Air conditioning and heating
Satellite televisions and DVD players
Wireless 4G internet
High speed satellite internet (VSAT)
Hot water boiler
Coffee Machine


Capacity 24 Industrial Personnel, 3 Crew
Builder Diverse Marine (August 2022)
Class BV +HULL +MACH Lightship/Fast Utility Vessel, Sea Area 2 & 3
Area Europe
Dimen. 30.0m x 10.9m x 1.8m

Vessel Specification

Download Spec Sheet (1.96 Mb)

ISM Certified ICO Combined
