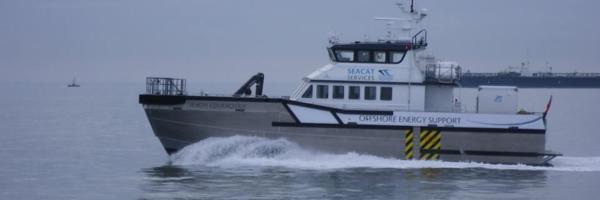

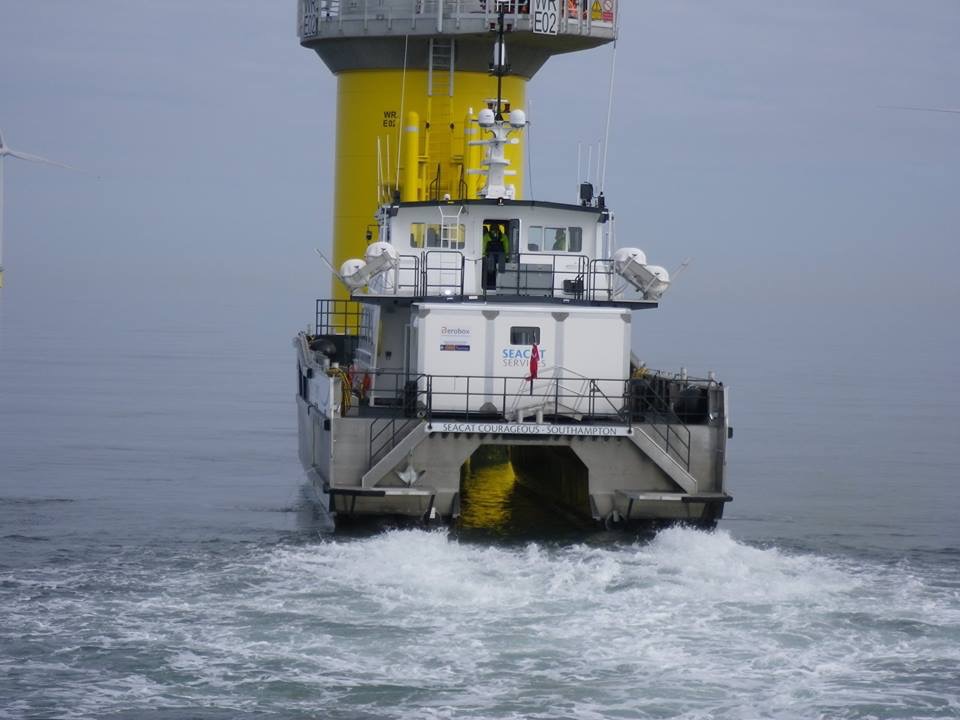

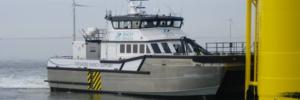

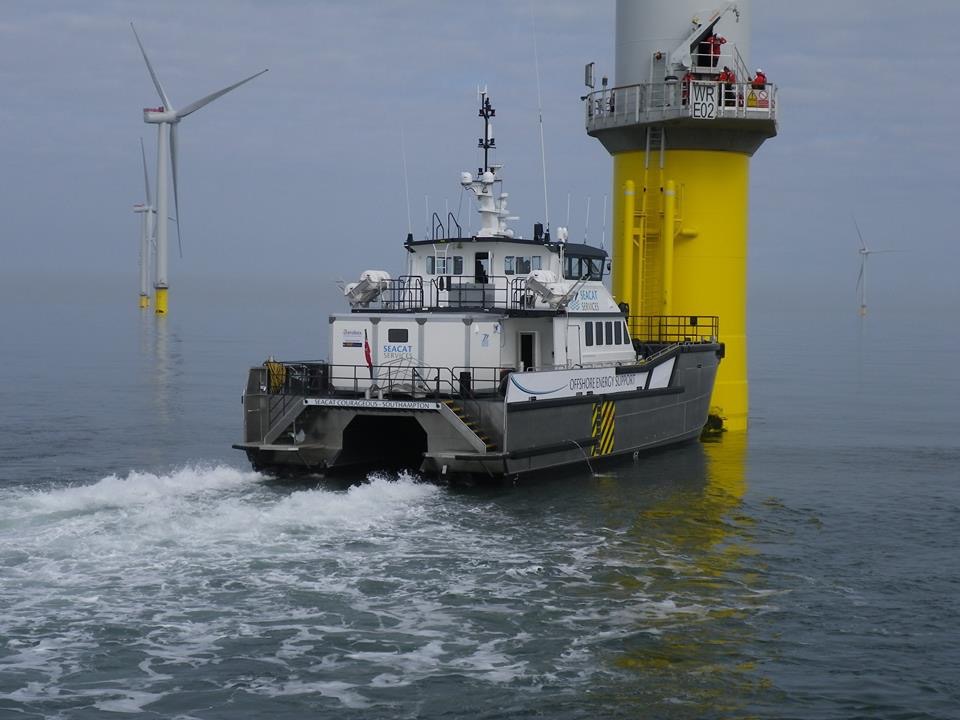

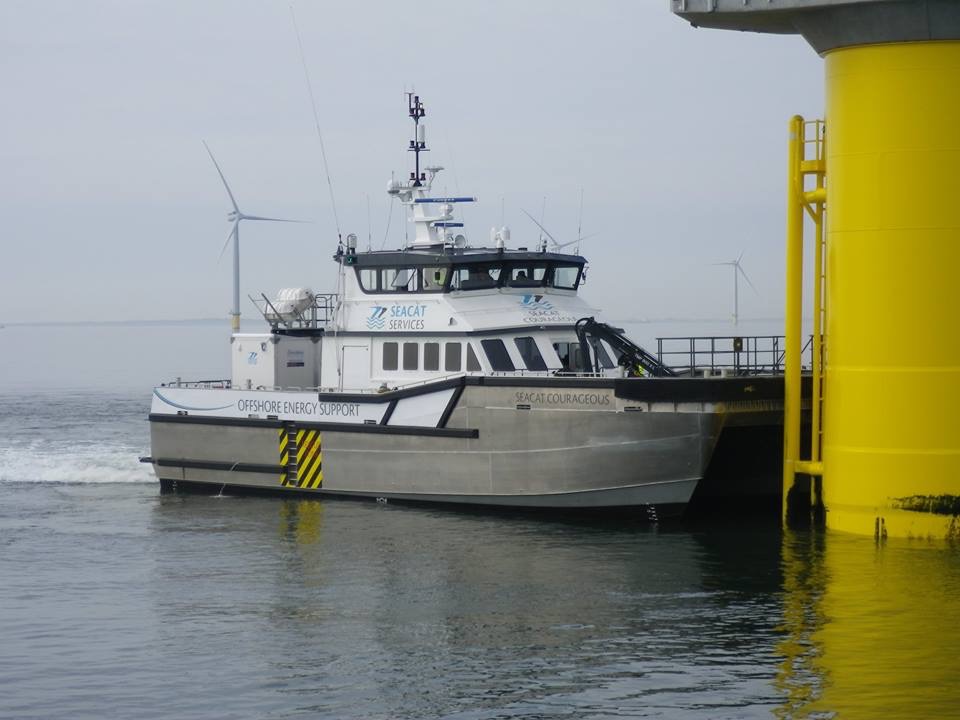

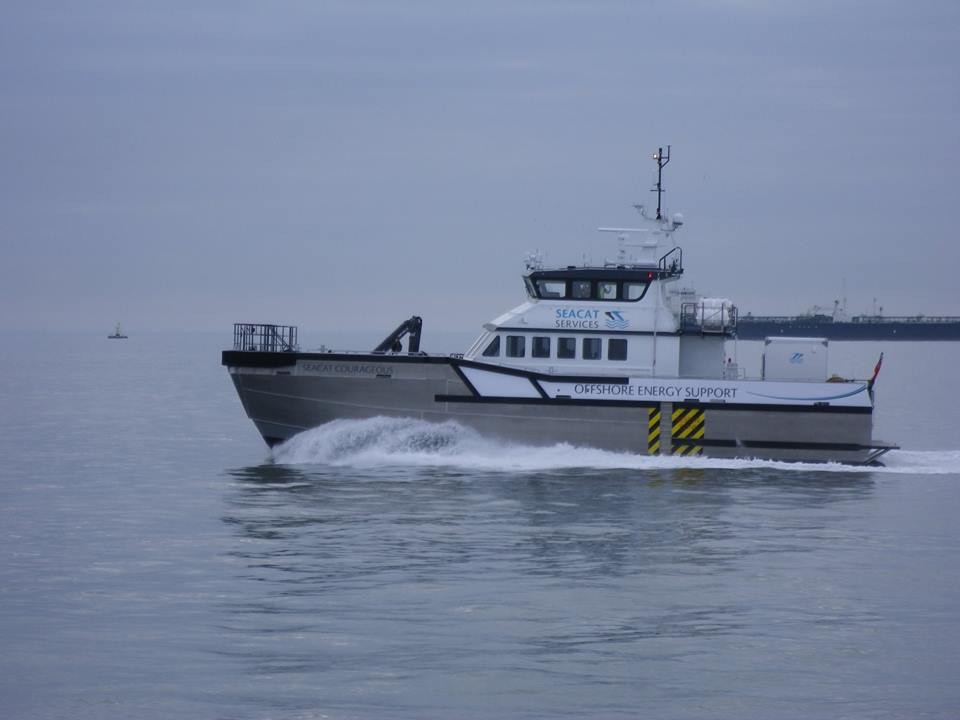

Seacat Courageous

Available from December 2016

Below is a general specification of our 26m DNV-GL class Windfarm support/crew transfer vessel. A more detailed specification is available as a download. The latest generation of South Boats WFSV has been designed to maximise passenger safety and comfort and is truly a multi-purpose workboat specifically for the offshore windfarm application.

General:

  • Builder: South Boats Isle of Wight Ltd.
  • Design: South Catamaran 26M
  • ​Capacity 24 Passengers, 3 Crew
  • Construction: Aluminium
  • Length Overall: 26.77m
  • Max Beam: 9.12m
  • Draft: 1.45m
  • GRT: 108 tonnes
  • Certification: DNV-GL +1A1 HSLC R1 Windfarm Service 1 and UK MCA, Cat 1, 150Nm from Safe Haven

Statistics:

  • Fuel 25,500 Litres
  • Fresh Water 1500 Litres (with option for de-salination at 275l/ph)
  • Waste Water 1500 Litres
  • Sprint: 29 Knots
  • Service Speed: 26.0 Knots

Cargo:

  • Foredeck = 62m2 | 15 Tonnes | 2 x 20' or 2 x 10' containers
  • Aft Deck = 44m​2 | 5 Tonnes | 1 x 16' or 10' container

Machinery:

  • 2 x MTU 12V2000 M72 Main Engines
  • 2 x ZF 3050 Gearboxes
  • 2 x Rolls Royce 56A3 Water Jets
  • 1 x Onan 19.5kw Auxiliary Generator
  • 1 x 6kw Secondary Generator

Deck Equipment

  • Fuel transfer system
  • Pressure washer
  • Crew access system capable
  • TMP 900XL Crane

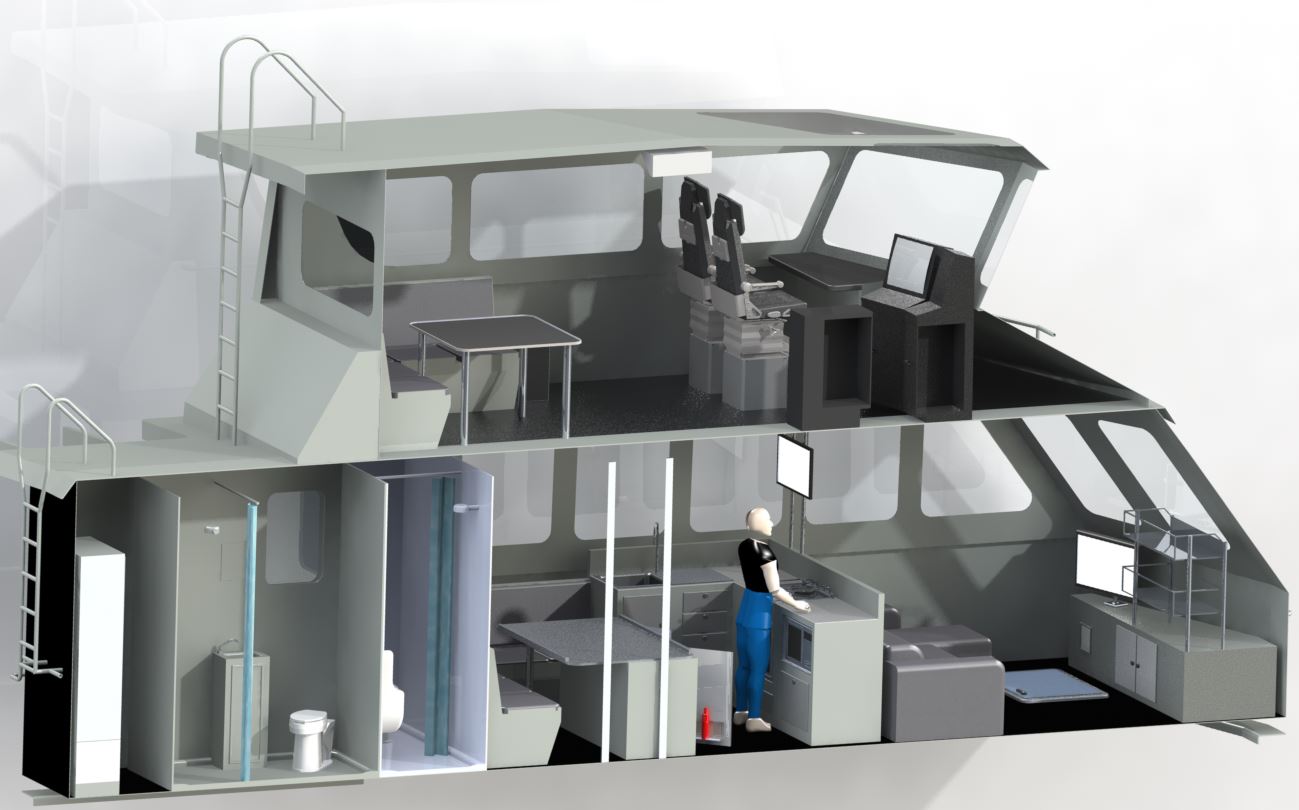

Welfare

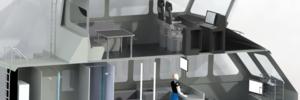

  • Modular interior configurable to clients requirements

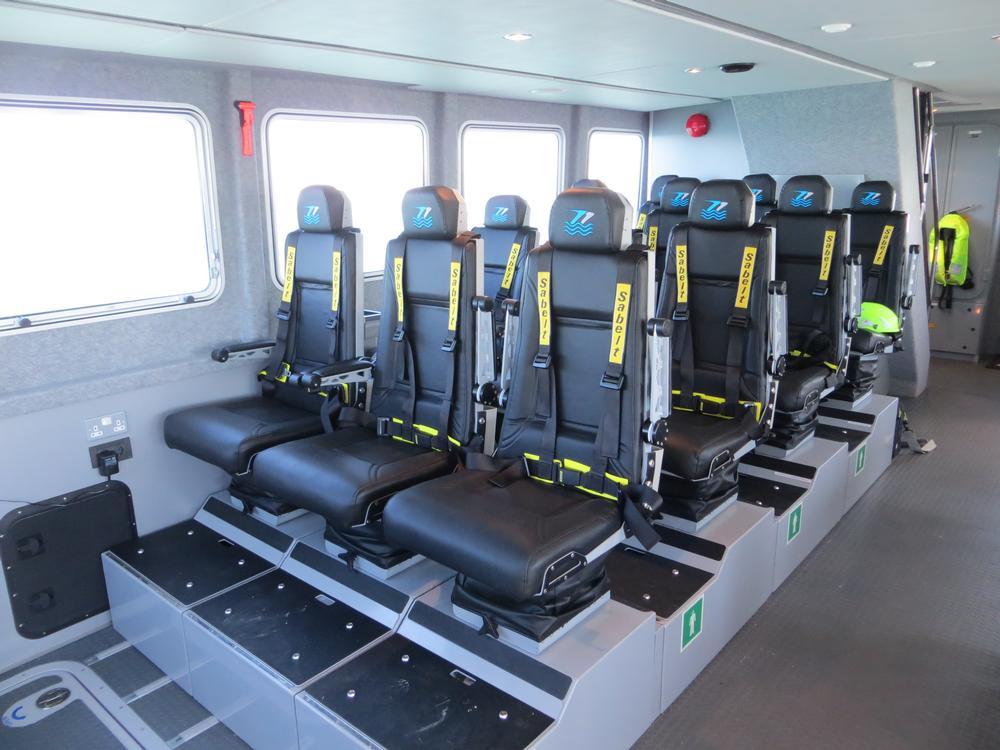

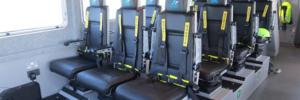

  • Crash tested suspension seats
  • Settee and crew mess area
  • Luggage and spares areas
  • 2 x Crew cabins
  • 2 x Toilets
  • Shower
  • Air conditioning
  • Heating
  • Induction Hob
  • Oven
  • Microwave/Combination-Oven
  • Hot water boiler
  • Coffee Machine
  • Fridge
  • Washing Machine
  • Tumble Dryer

Entertainment

  • 3 x LCD Satellite televisions
  • DVD player
  • Games Console
  • ​FM Radio
  • Wireless 3G Internet
  • High speed satellite Internet (VSAT)





Overview


Capacity 12 pax, 2/3 crew
Builder South Boats (Apr 2015)
Class DNV-GL 1A1 HSLC R1 Windfarm Service 1
Area Europe
Dimen. 26m x 9m x 1.4m

Vessel Specification

Download Spec Sheet (1.14 Mb)
