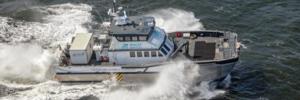

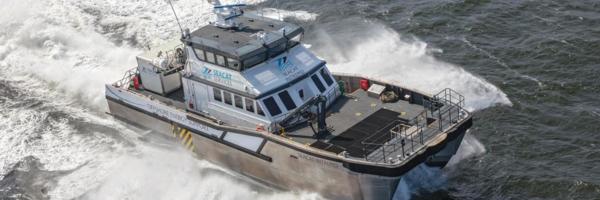

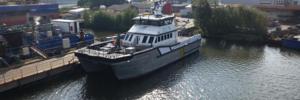

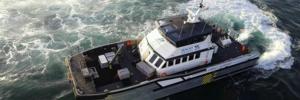

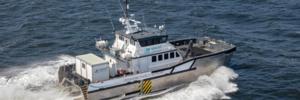

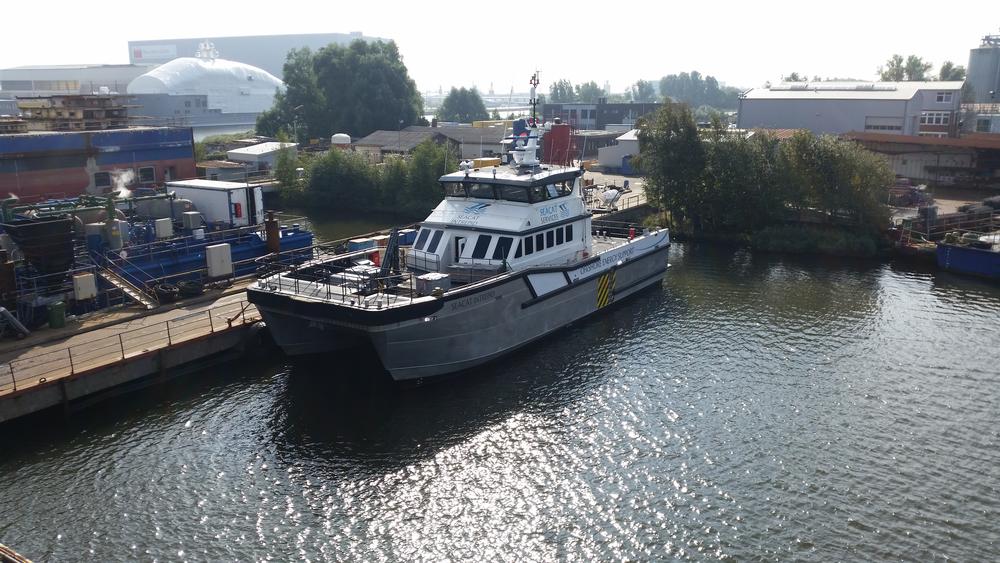

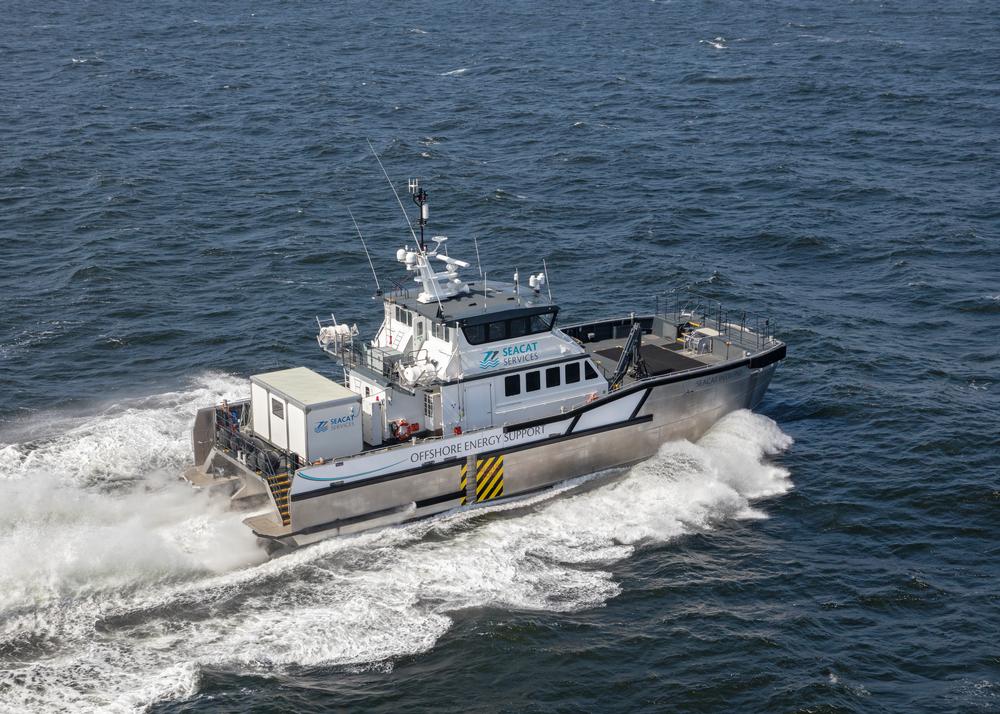

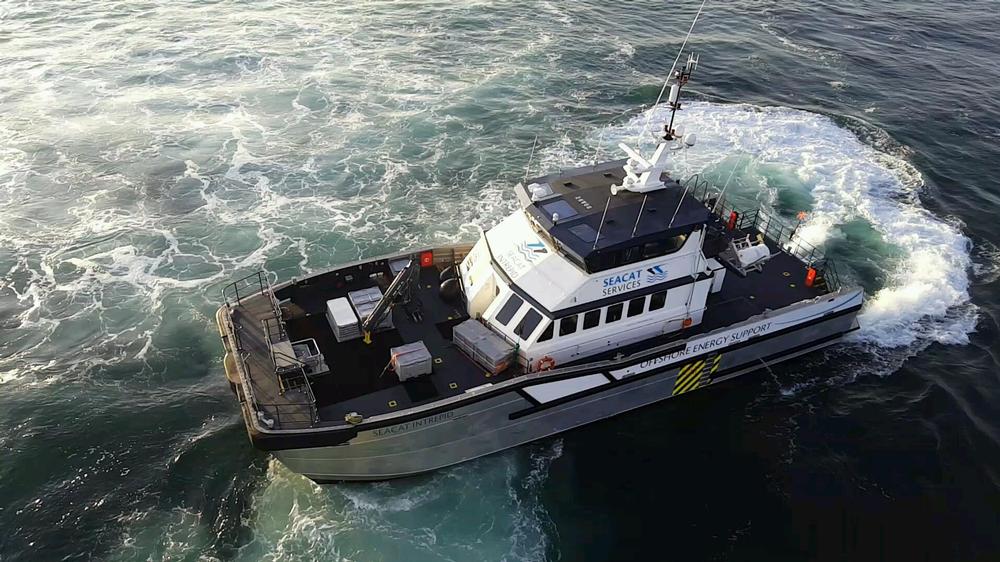

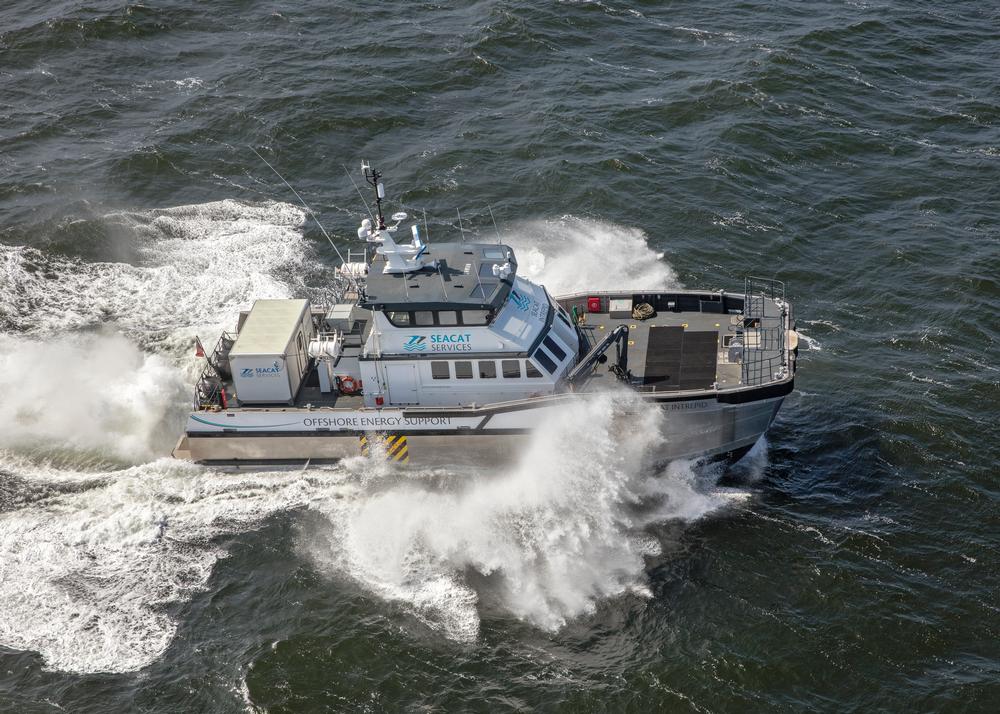

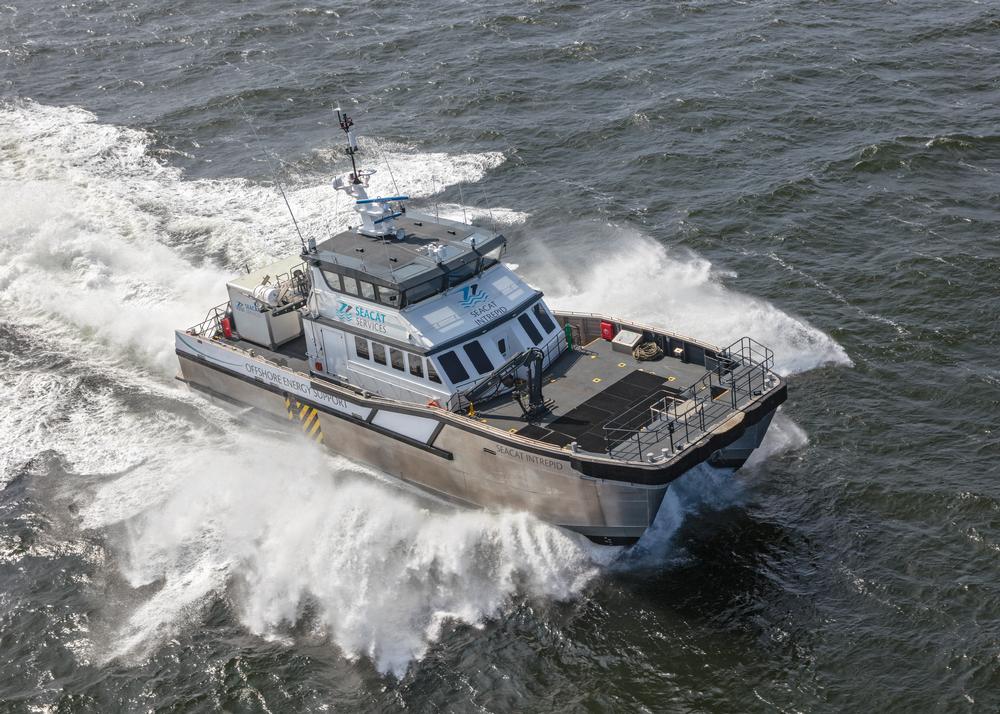

Seacat Intrepid

Available from March 2017

Below is a general specification of our 26m DNV-GL class Windfarm support/crew transfer vessel. A more detailed specification is available as a download. The latest generation of South Boats WFSV has been designed to maximise passenger safety and comfort and is truly a multi-purpose workboat specifically for the offshore windfarm application.

General:

  • Builder: South Boats Isle of Wight Ltd.
  • Design: South Catamaran 26M WFSV
  • Construction: Aluminium
  • Length Overall: 26.77m
  • Max Beam: 9.12m
  • Draft: 1.45m
  • GRT: 100 tonnes
  • Certification: DNV-GL +1A1 HSLC R1 Windfarm Service 1 and UK MCA, Cat 1, 150nm from Safe Haven 12pax/3 crew

Statistics:

  • Fuel 20,000 Litres
  • Fresh Water 1500 Litres (with option for de-salination at 275lph)
  • Waste Water 1500 Litres
  • Sprint: 29 Knots
  • Service Speed: 26.0 Knots

Machinery:

  • 2 x MTU 12V2000 M72
  • Rolls Royce 56A3 Water Jets
  • Onan 19.5kw Auxiliary Generator
  • 6kw Secondary Generator

Equipment

  • Fuel transfer system
  • Pressure washer
  • Crew access system capable
  • Crane capable
  • Container mounts forward and aft

Welfare

  • Crash tested suspension seats
  • Settee and crew mess area
  • Luggage and spares areas
  • 2 crew cabins
  • Toilet
  • Shower
  • Air conditioning and heating
  • Satellite televisions and DVD players
  • Wireless 3G internet
  • High speed satellite internet (VSAT)
  • Cooker
  • Microwave/Combination-Oven
  • Hot water boiler
  • Coffee Machine
  • Fridge
  • Washing Machine
  • Tumble Dryer



Overview


Capacity 12 pax, 2/3 crew
Builder South Boats (Oct 2014)
Class DNV-GL 1A1 HSLC R1 Windfarm Service 1
Area Europe
Dimen. 26m x 9m x 1.4m

Vessel Specification

Download Spec Sheet (1.14 Mb)
