Seacat Magic

In build, available from February 2016

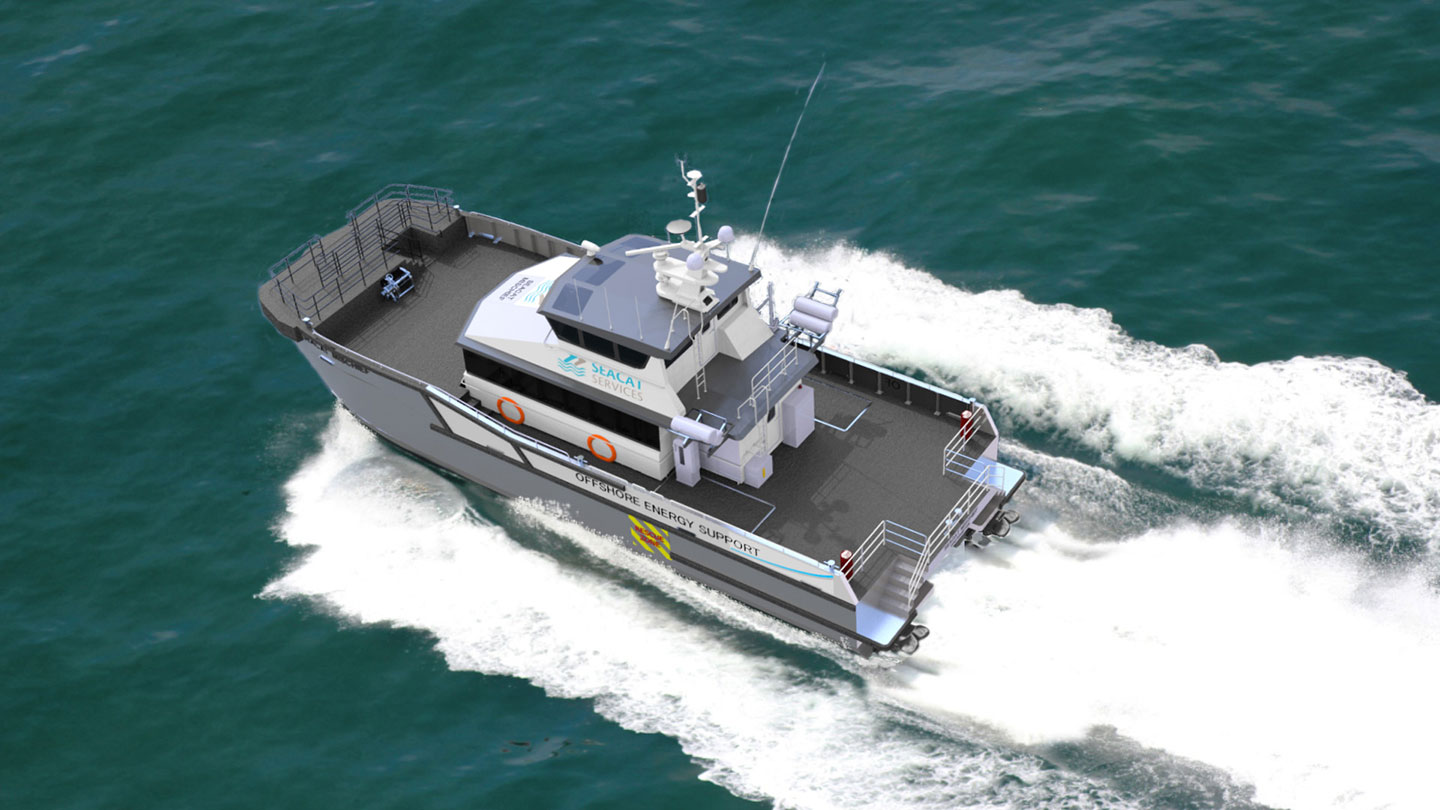

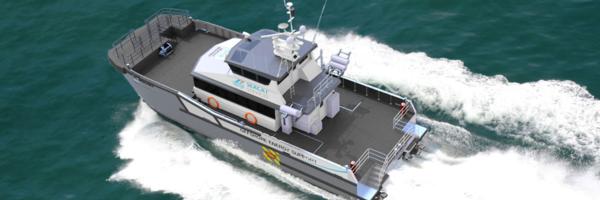

Below is a general specification of our 23m class Windfarm support/crew transfer vessel. A more detailed specification is available as a download. The latest generation of South Boats OESV has been designed to maximise passenger safety and comfort and is truly a multi-purpose workboat specifically for the offshore windfarm application.

General:

Builder: South Boats Special Projects Ltd.
Design: South Catamaran 23m OESV
Capacity: 12pax/3 crew
Construction: Aluminium
Length Overall: 23.1m
Max Beam: 7.7m
Draft: 1.2m
GRT: 106 tonnes
Certification: DNV-GL +1A1 HSLC R1 Windfarm Service 1 and UK MCA, Cat 1, 150Nm from safe haven

Statistics:

Fuel 16,000 Litres
Fresh Water 1,000 Litres
Sprint: 29.0 Knots
Service Speed: 26.0 Knots

Machinery:

2 x MTU 12V2000 M72
2 x Rolls Royce 56A3 Water Jets
2 x Onan 19.5kw Auxiliary Generator

Equipment:

Fuel transfer system
Pressure washer
Crew access system capable
Crane capable
Container mounts forward and aft

Welfare:

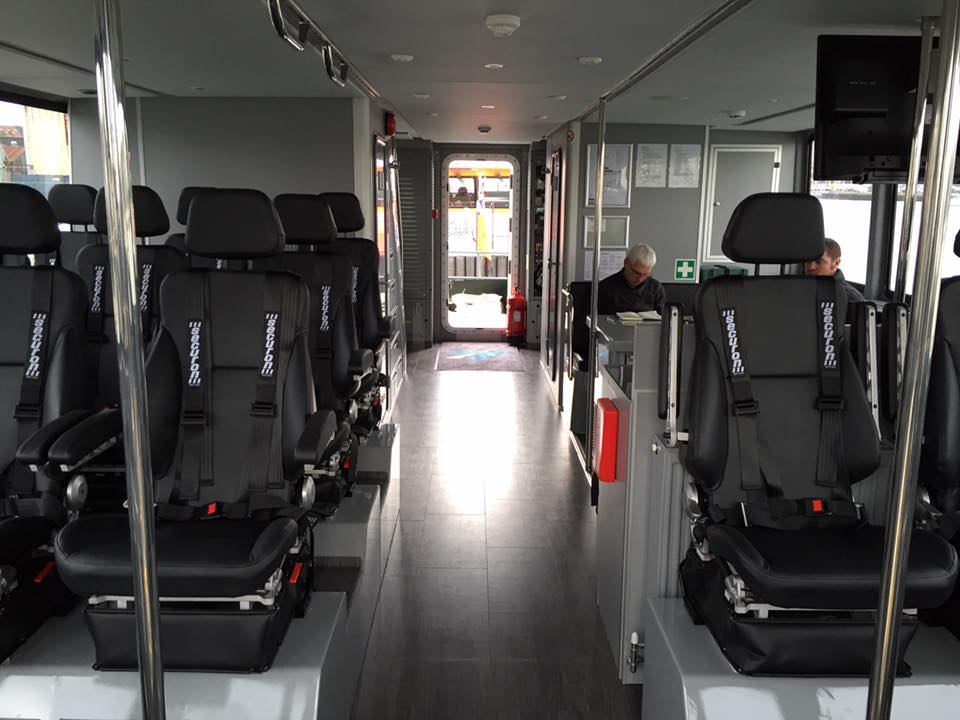

15 x Crash tested suspension seats
Crew mess area
Luggage and spares areas
2 x Crew cabins
2 x Toilets,
Shower
Air conditioning and heating
Satellite televisions and DVD players
Wireless 3G internet
High speed satellite internet (VSAT)

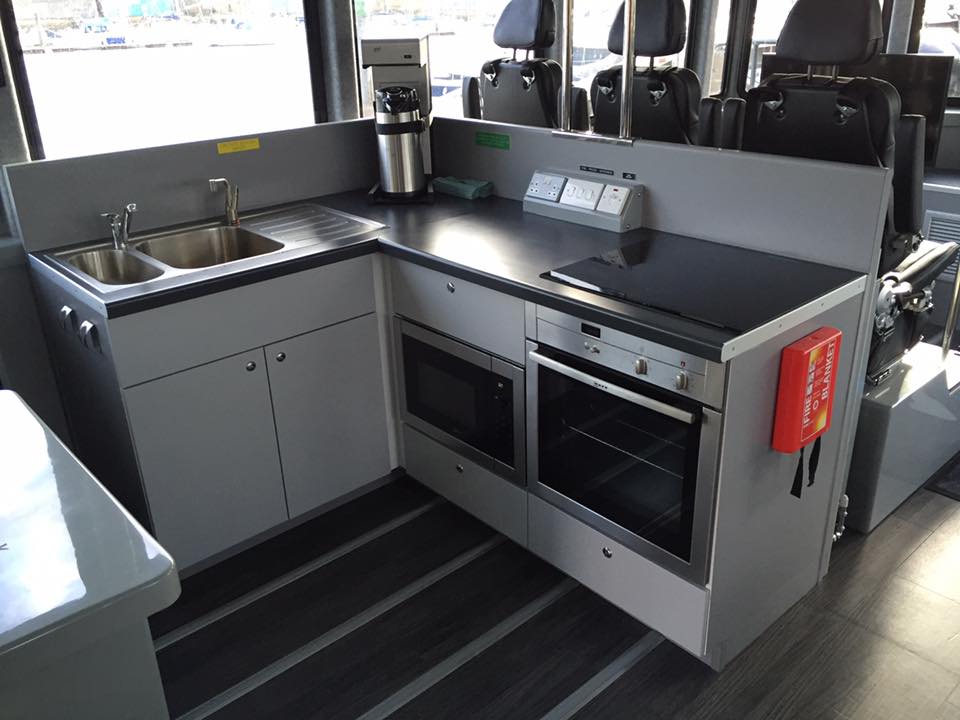

Inducton Hob
Microwave/Combination-Oven
Hot water boiler
Coffee Machine
Fridge
Freezer
Washing Machine
Dryer

Overview


Capacity 12 pax, 2/3 crew
Builder South Boats (Feb 2016)
Class DNV-GL 1A1 HSLC R1 Windfarm Service 1
Area Europe
Dimen. 23.1m x 7.7m x 1.2m

Vessel Specification

Download Spec Sheet (865 kb)
